Main Features:
1. Refrigerant gas: R404A,R22,R507
2. Tube ice making plant for the evaporator module and its
accessories are installed on a steel frame forms the evaporator
module. When transportation, place the evaporator horizontally and
upright it when installing. For big tube ice plant, we will send
engineer to your country to help with it.
3. Tube ice external diameter: 22mm, 28mm and 35mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making
time
-Length: 25mm-50mm
- We can make the size according to your requirements.
4. standard ambient : 30 °C, water temp: 25 °C
Decription:
1. Tube ice is hard, powderless, clean, glittering and hollow
shaped, the special ice-making method can remove impurity of water.
2. With high density, ice purity and not easy to melt, especially
tube ice is very beautiful. Tube ice is popular in
catering&beverage and food fresh keeping. The ice is very
common in our daily life and commercial using.
3. Self-design, self-production, optimize every processing works,
make the machine a perfect performance.
4. Standard power supply for small capacity tube ice machine is
380V/3P/50Hz and it can be customized to meet different electrical
requirements.

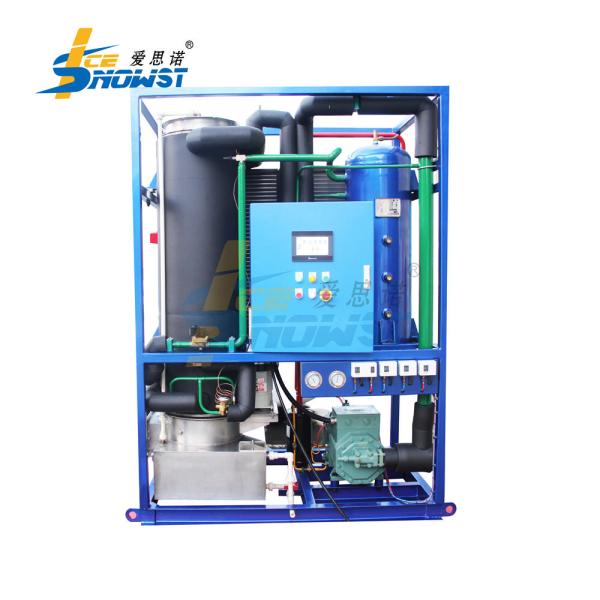

Specification:
| roduct Name | Tube Ice Machine |
| Output | 3ton/24hours |
| Model | ISN-TB30 |
| Total Power | 14 kw |
| Ice diameter | 22mm,28mm or 35mm for option |
| Machine material | SS304 stainless steel tube |
| Machine size | 1660*1250*2200 (mm) |
| Machine weight | 1580kgs |
| Tube ice feature | Tube ice has high density. Tube ice is hard, powderless, clean,
pure, glittering, hollow shaped, not easy to melt.The ice is very
common in our daily life and commercial using. |
| Application of tube ice | Drinks, Catering & Beverage, Hotels, Food processing, Vegetable &
fruit fresh keeping, Temp control of Industry and Industrial
Production etc. |
Product Advantage:
1. The design of ice tube evaporator is according to pressure
vessel standard. It is strong , safe and reliable;
2. Beautiful shape, overall layout is reasonable, comprehensive
details, excellent.
3. Efficient performance: tube ice evaporator adopt SUS304, PE, and
aluminum material and with special heat treatment, make the tube
ice evaporator with best thermal performance.
4. Full automatically control: PLC system controls the whole ice
making process, PLC program Logic Controller, which allows multiple
functions such as automatic machine start and shut down; ice
falling automatically when the freezing time is ensured, Automatic
water making up.
5. Special ice outlet. Ice discharging automatically, No need
taking ice by hand which can guarantee the ice clean and sanitary,
meanwhile, it is matched with ice packing system to package the ice
by plastic bags.
Main Components:
| tem | Name of Components | Brand Name | Original Country |
| 1 | Compressor | Danfoss/BITZER | Denmark/Germany |
| 2 | Ice Tube Evaporator | ICESNOW | China |
| 3 | air cooled condenser | ICESNOW |
| 4 | Refrigeration components | DANFOSS/CASTAL | Denmark/Italy |
| 5 | PLC Program control | SIEMENS | Germany |
| 6 | Electrical components | LG (LS) | South Korea |
Product Application:
FAQ:
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice
machine's daily capacity, how many tons of ice do you want to
produce/consume per day?
(2) The install place power/water confirmation, for most big ice
machines, will need run under 3 Phase industrial use power, most
Europ/Asia countries is 380V/50Hz/3P, most North and South America
countries are using 220V/60Hz/3P, please confirm with our salesman
and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide
you the exact quotation and proposal, a Proforma Invoice will be
provided to guide you the payment (T/T or L/C) to close the deal,
for all our standard design, we will need about 35~45 working days
on the production.
