Main Features:
1. The traditional craft of brine heat ice, ice machine running
stable, low failure rate;
2. According to customer requirements, design suitable block ice
machine for the customer request;
3. The ice mold can be made of galvanized sheet or stainless steel;
4. The machine process of ice is the full automatic control; don't
need a professional people with certificates;
5. Germany technology and year's research experience in refrigeration.
Product Description:
1.Block ice size: 5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 50kg, 100kg,
etc. And we can also design the ice block size according to
customers' needs.
2. Thawing tank:Heated by hot gas discharged from the compressor so that it is more
energy saving and suitable for low water temperature area.
3. The ice block machine adopts separate design for the ice block
machinery unit and water tank part, which is easy to install and
maintenance. Meanwhile you just need to connect water pipes and
power lines to the machine.
4. World-wide famous compressor: Bitzer/Boc & Schneider electric parts
& Danfoss/Emerson Refrigeration parts.
Specification:
| Model | ISN-ZK50 |
| Cooling Capacity (kw) | 135KW |
| Daily capacity | 5Ton/day |
| Rated Power (kw) | 60kw |
| Compressor brand | Screw Hanbell |
| Compressor power | 47KW |
| Refrigerant gas | R404A/R22/R507 |
| Power supply | 3P/380V/50Hz |
| Each Ice Block weight(kg) | 50kg |
| Dimension of block ice evaporator | 5650*2110*2280mm |
| Dimension of condensing unit | 3120*2300*2100mm |
Advantages of our block ice machine:
1). The ice moulds and salt water tank are made of stainless steel 304
material, which is anti-rust and anti-corrosive and life span is
longer.
2). Modular structure and integrated design, save space, flexible move,
easy to install and harvest ice on the spot.
3). Low energy consumption, low maintenance, safe and reliable,
environmentally friendly and high capacity.
4). New ISO transport containers, in line with CE certification,
ISO9001-2008 quality system certification.
5).High density and good apparent:The brine block is not easy to break during movement for it has
more density than direct block ice, and brine block is more durable to heat, wind and sunshine, which mean more storage period,
What's more, brine block have good looks, it has classic color
attractive to eyes.
| Ice Size/pc | Ice Dimension (mm)
(Thickness*Width*Height) | Freezing Time
(Hours) | Ice Making
Frequency (Times) |
| 5KG | 95*130*500 | 3 | 7 |
| 10KG | 95*260*500 | 3 | 7 |
| 15KG | 123*300*500 | 8 | 3 |
| 123*215*710 | 8 | 3 |
| 20KG | 123*285*710 | 8 | 3 |
| 25KG | 123*350*710 | 8 | 3 |
| 155*280*710 | 8 | 3 |
| 30KG | 155*315*710 | 8 | 3 |
| 50KG | 410*160*925 | 12 | 2 |

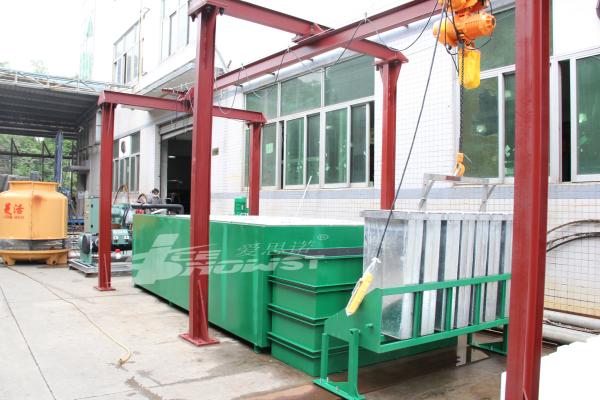

Product image:
Applications:
1. Ice factory of the ports and docks,
2. Fressh for aquatic products,
3. Cooling,
4. Distance transportation
5. Fishery
6. Food preservation
7. Special areas of cooling
8. Ice sculpture.
FAQ:
Q1: Are you factory or trade company?
A: We are factory,have our own machines,workers,R&D
department.Sales and after-sale department.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
You're welcome to see the test of the machines for days.
Q3. Do we need other equipment to start ice block business?
A: Considering to ice block business running in long term, you can
get ice storage room to store ice block and whenever client buy
ice, you have enough ice to sell from ice storage room
Q4.What can you do for us?
A:All material/color/size are available, also we can customize
products as your requirements. Any questions, pls don't hesitate to
contact us!
