Main Features:
● Daily Capacity: 5ton/day
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● PLC intelligent control system, fully automated production, no
manual operation required
● Adopt environmentally friendly refrigerant, environmental
protection, high efficiency and energy saving
● The overall flake ice machine is very easy to transport, move and
install on site
● Direct low temperature continuous ice formation, ice temperature
below -8 °C, high efficiency
● Flake Thickness : 1.1-2.2MM
● Refrigerant gas: R22/R404A/R507
Decription:
1 .Icesnow flake ice machine designed based on the features and
special requirements of supermarket freshing, lab and health care
industry, applicated to the field which demands high grade of ice
flake
2. Thermal insulation: foaming machine filling with imported
polyurethane foam insulation. Better effect.
3. As Its flat and thin shape, It has got the largest contact area
among all types of ice. The larger its contact area Is, the faster
it cools other stuff.
4. Fast ice making speed: Can produce ice within 3 minutes after
starting It, do not need extra person to take off and get the ice.
Specification:
| Name | Technical Data |
| Ice production | 5ton/24h |
| Refrigeration capacity | 28015Kcal/h |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Ambient Temp. | 35℃ |
| Inlet water Temp. | 20℃ |
| Total Power | 18.5kw |
| Compressor Power | 25HP |
| Reducer Power | 0.37KW |
| Water pump Power | 0.18KW |
| Brine Pump | 0.012KW |
| Standard Power | 3P-380V-50Hz |
| Inlet water pressure | 0.1Mpa－0.5Mpa |
| Refrigerant | R404A |
| Flake ice Temp. | -5℃ |
| Feeding water tube size | 1/2" |
| Net weight | 1070kg |
| Dimension of flake ice machine | 2040mm×1650mm×1630mm |
Product Advantage:
1. Refrigerating unit -- Main parts of refrigerating units are all
from America, Germany, Japan and other countries that have leading
refrigeration technology.
2. PLC programmable control system -- The machine can start and
stop automatically to make the evaporator mechanical operation
system and water supplying circulation system coordination matched
and work safely & efficiently under the control of PLC controller.
The whole system is protected by the alarm of water shortage, ice
full, high and low pressure abnormal, power phase inverse and
compressor overload, etc.with the computer intelligence control.
When there is a failure, the PLC will stop the unit automatically
and the corresponding alarming indicator lights up. And when the
fault is settled, PLC controller will soon start the machine after
receiving the information. The whole system is controlled
automatically well without hand operation.
3. Evaporator--Ice machine evaporator adopts the fixed static
vertical design, namely the evaporator is static and the ice blade
rotate in the inner wall to scrape ice. The design reduces the
wear, has high sealing and avoids the leakage of the refrigerant
effectively. It is made of SUS 304 material and adopts automatic
fluorine welding technology to improve its intensity and accuracy.
5. Ice skates: Spiral hob with small resistance and low
consumption, ice making evenly without noise

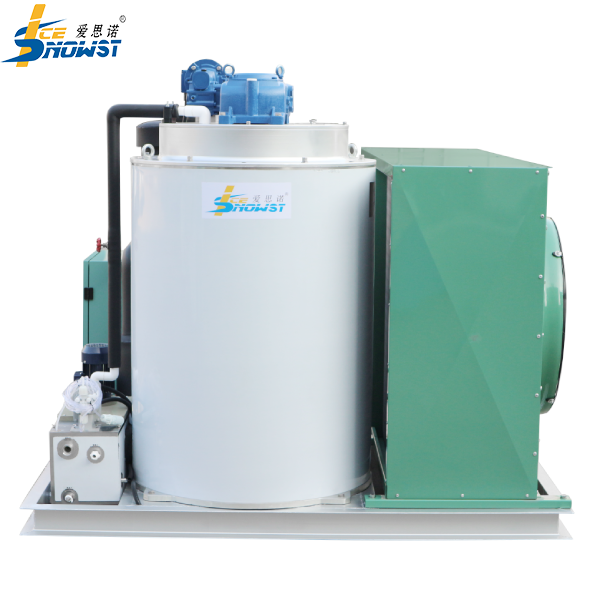

Product image:
Flake ice machine Application:
1) Fishing--Sea water flake ice machine can make ice directly from
the sea water, ice can be used in fast cooling of fish and other
sea products. Fishing industry is the largest application field of
flake ice machine.
2) Sea food process--Flake ice can lower the temperature of
cleaning water and sea products, therefore it resists the growth of
bacteria and keeps the sea food fresh.
3) Bakery--During the mixing of flour and milk, can prevent the
flour from self raising by adding flake ice.
4) Poultry--Huge amount of heat will be generated in food
processing, flake ice can effectively cool the meat and water air,
also supply moisture for the products at the meantime.
FAQ:
A. Installation for ice machine:
1). Installing by the user: we will test and install the machine
before shipment, all necessary spare parts, operation manual and CD
are provided to guide the installation.
2).Installing by Icesnow engineers:
(1) We can send our engineer to assist the installation and provide
technical support and train your workers. The end-user should
provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place,
electricity, water and installation tools should be prepared.
Meanwhile, we will provide you a Tool List with the machine when
delivery.
(3) 1~ 2 workers are required to assist the installation for big
project.
